Re: F1 Memorabilia
Posted by: Rosberg
Date: 26/05/2013 13:22
I was actually working on the Williams FW10 while i took a break out to make the two Lotus figures. Below are WIP photos of the FW10.

http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012624.jpg

Drilled holes and test fit all the suspension arms before putting on the primer.

http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012741.jpg

i've applied about 3 coats of grey and another 3 coat of white primer to the body. Now i'm working on painting the uner-body black. I wanted to paint this area first as it's easy to mess up the exterior body if i'm not careful. So i wanted to get this out of the way before any colour paint or decal is applied.

http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012749.jpg

the underneath black is done and i've now sprayed about 3 coat of white paint to the body.

http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012757.jpg

now is onto the difficult but interesting bits. i've previously photocopied the decal sheet and i'm using this as a template to cut out the masking area for my masking tape.

http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012765.jpg


this is the masking tape
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012766.jpg

applied onto the body to cover up area that i don't want to get the yellow colour.
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012767.jpg

http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012770.jpg

here is the result
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012772.jpg

Next up is the blue area.
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012774.jpg

alot of working was going into the masking to ensure there's no bleeding through to the yellow and white area - this is critical. if not done properly, would require a un-do and re-do of the whole process.
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012782.jpg

here is the result - i'm mldly satisfied with it, with someo the blue paint was not straight due to the very tight area around the cockpit sides, luckily, there's the red thin line to cover up the imperfections.
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012789.jpg

After applying a couple coats clear coat (to seal the paint), now i can apply some decals onto the body. Note that i've also brush painted the interior cockpit black, this is a very difficult task (for me) as it's easy to mess up the exterior color if not careful, very very worrying when i was working on it and it took a lot of revisions / touch up to achieve a reasonabe result.
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012791.jpg

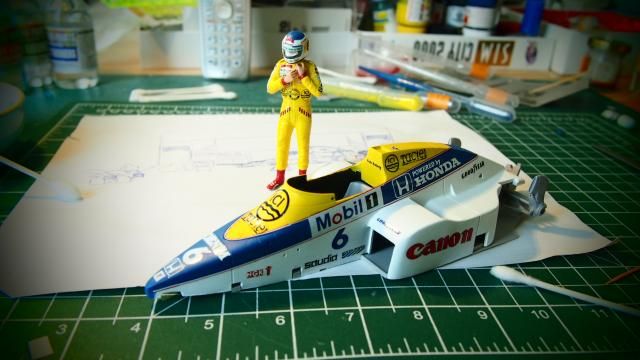

Keke is eagar to get into the car, but there's still a long way to go.
http://i241.photobucket.com/albums/ff226/KekeNicoRosberg/1-20%20Studio%2027%20-%201985%20Williams%20FW10/P1012796.jpg
